Star Lite Mk II / III / IV - Complete Disassembly Guide

  1. Place the Star Lite Mk II / III / VI on a soft, protected surface to avoid any possible scratching of the anodized finish.
  2. Remove the 10 outer short Philips screws from the backplate. (12 x screws for Lite Mk III)

  3. undefined

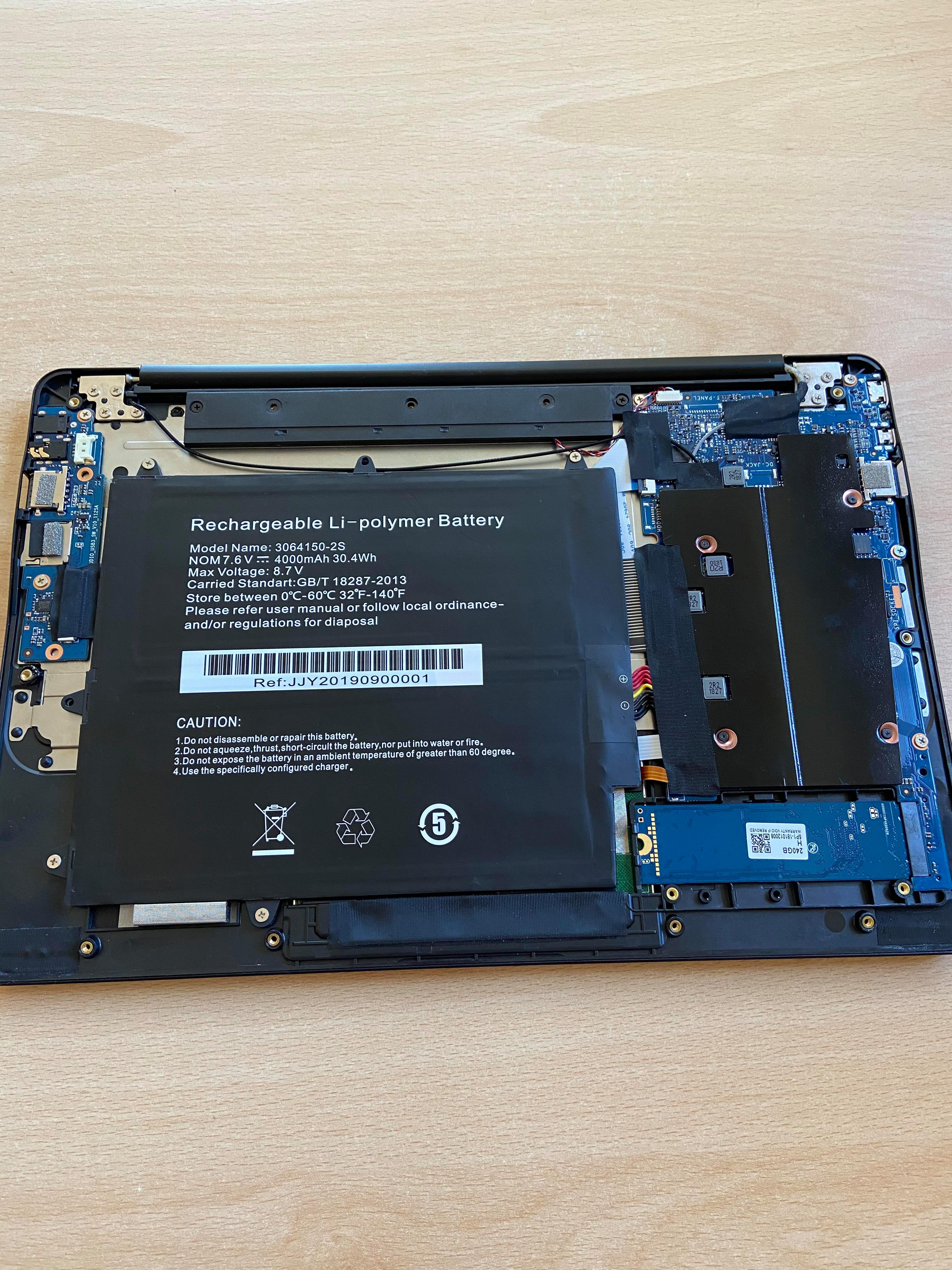

3. Once the backplate is carefully removed, you are presented with the components underneath

undefined

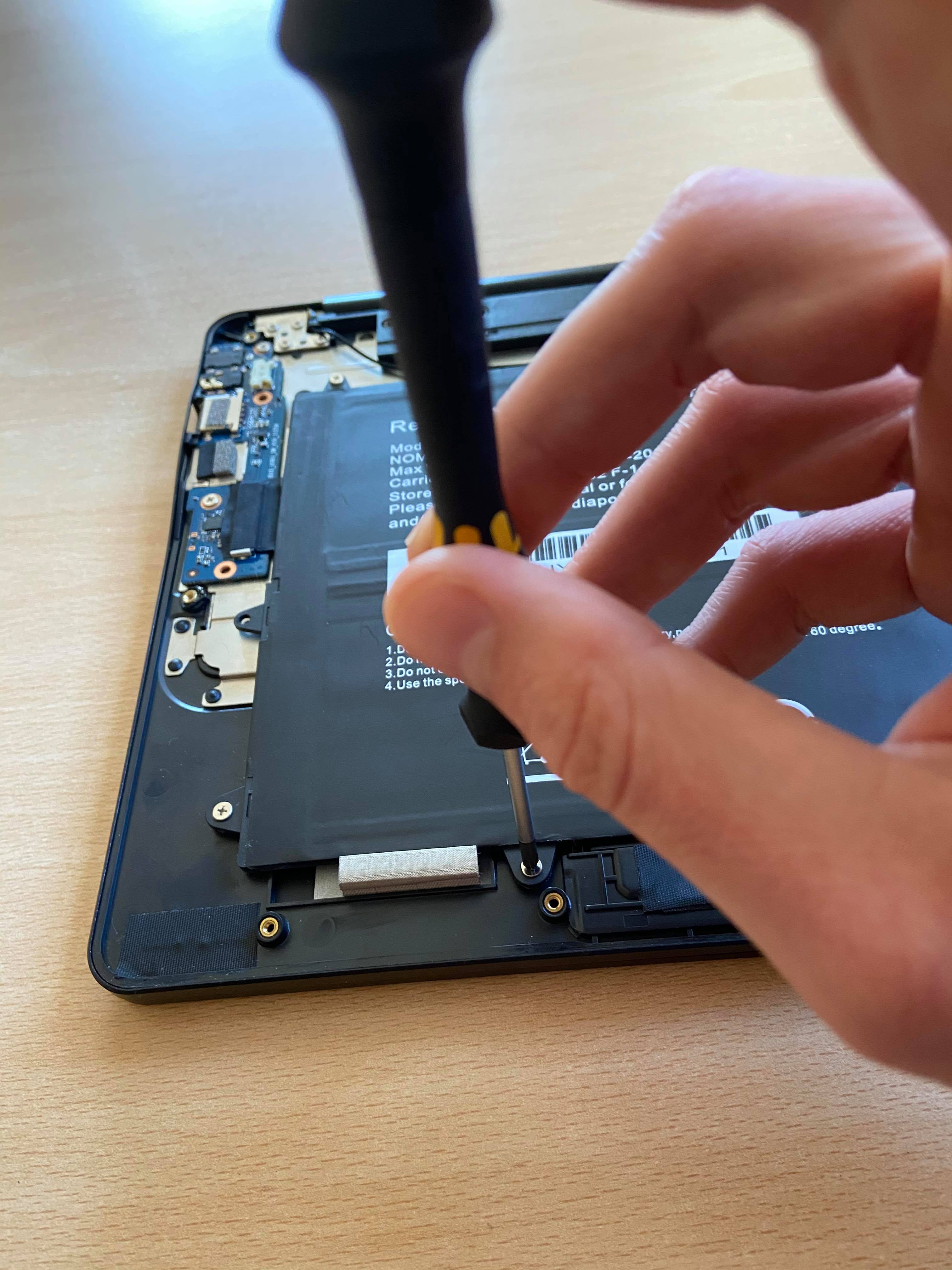

4. Remove the battery: remove the 4 x Phillips screws that hold the battery in place

undefined



5. Disconnect the battery connector

undefined



6. I/O board removal: lift the ribbon cable clamp to detach the ribbon cable, remove the 2 Phillips screws that hold the IO board in place, you can then lift out the I/O board

undefined

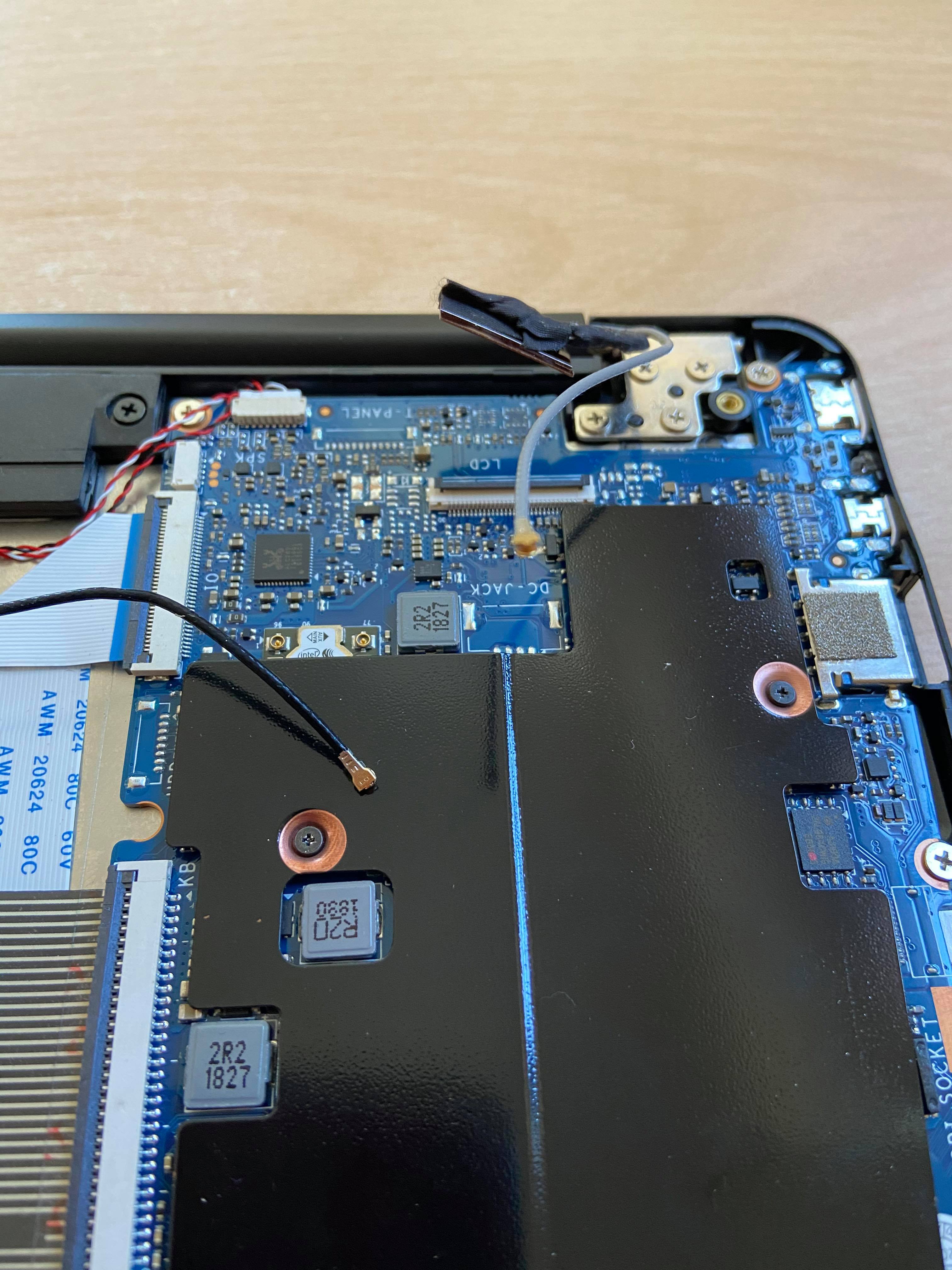

7. Disconnect the display connector, wireless and Bluetooth antennas

undefined





undefined

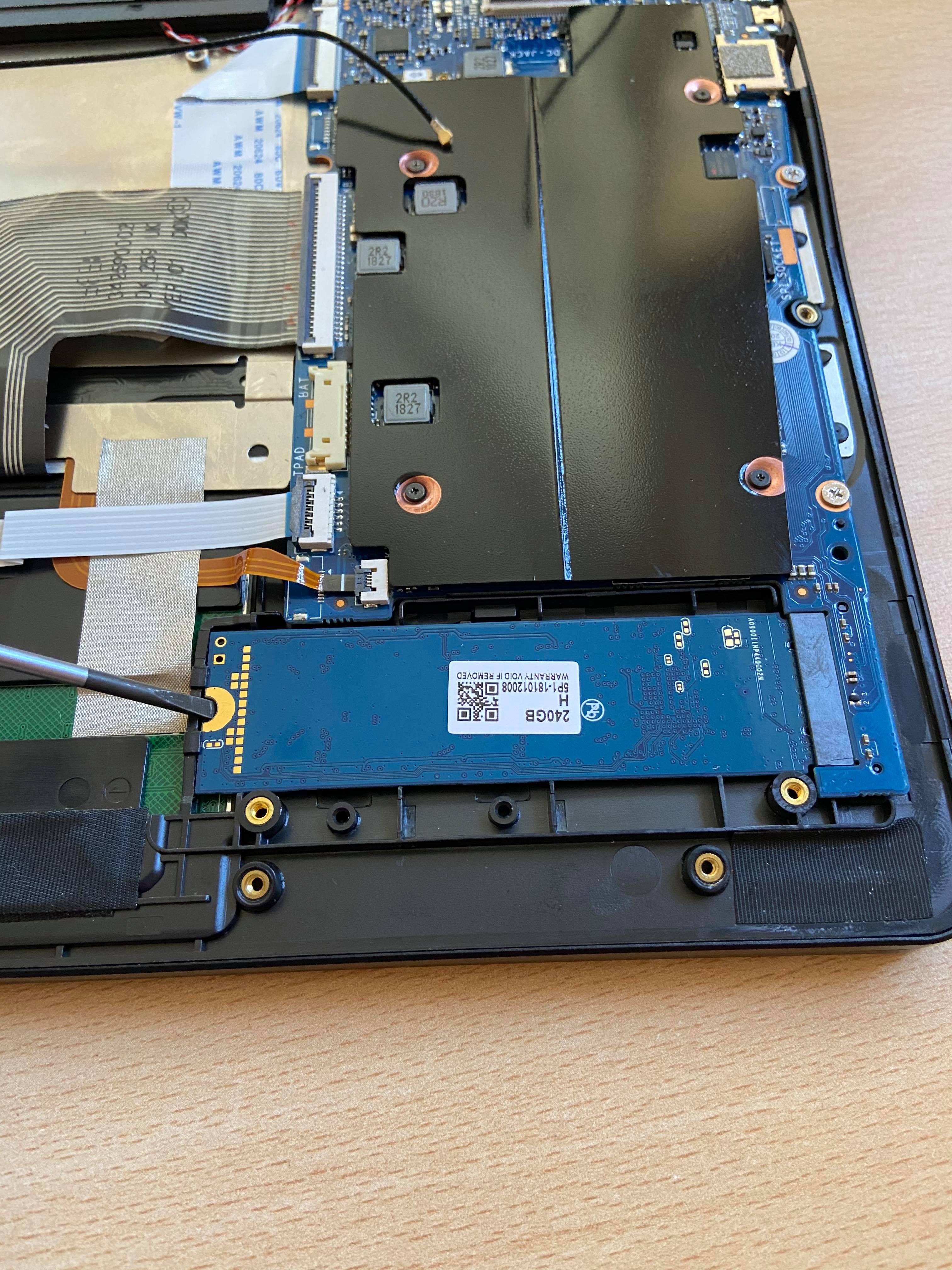

8. Disconnect the SSD from the mainboard

undefined



9. Disconnect the following ribbon cables/connectors from the mainboard: I/O board, keyboard, touchpad and backlight

undefined

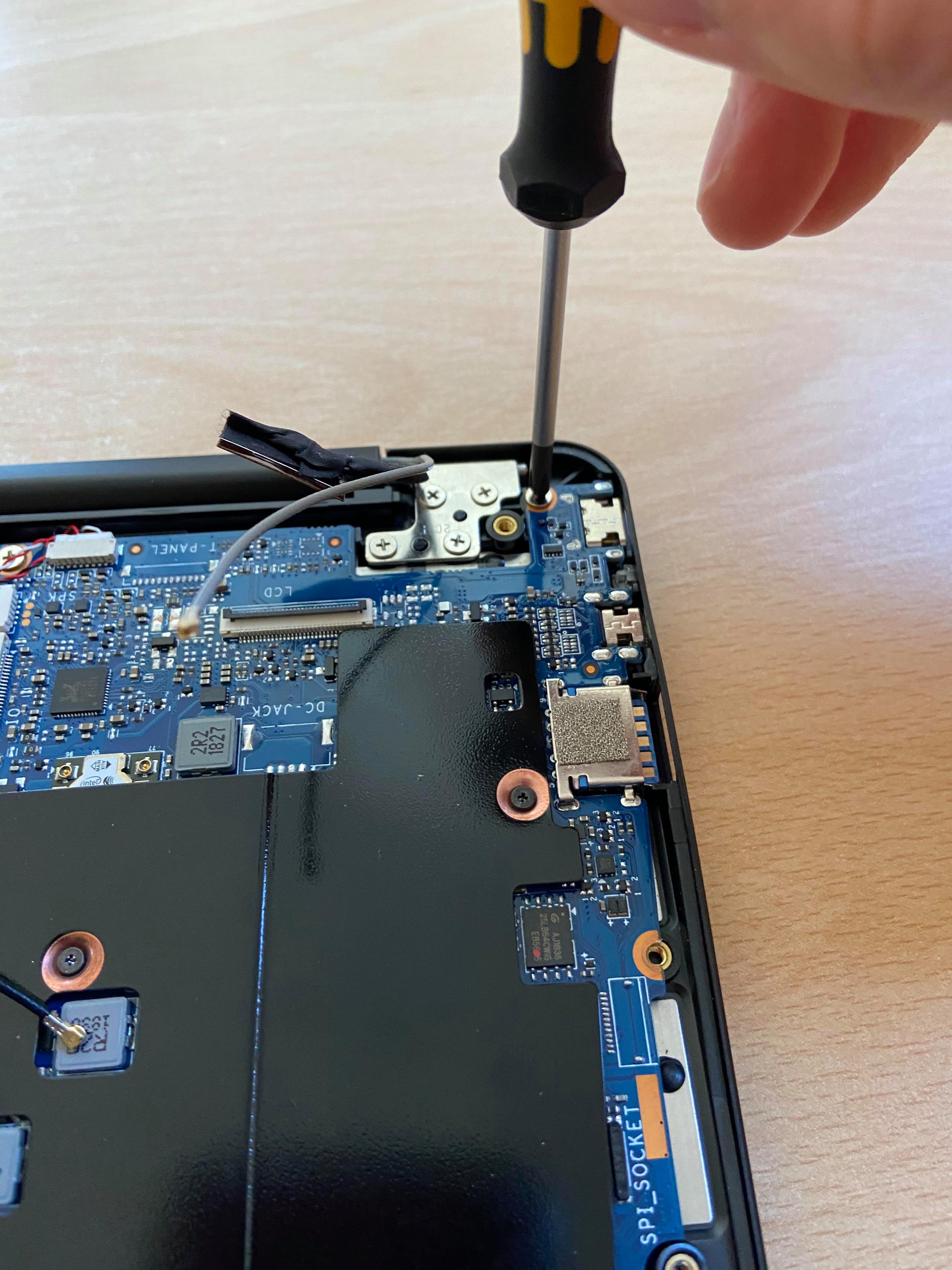

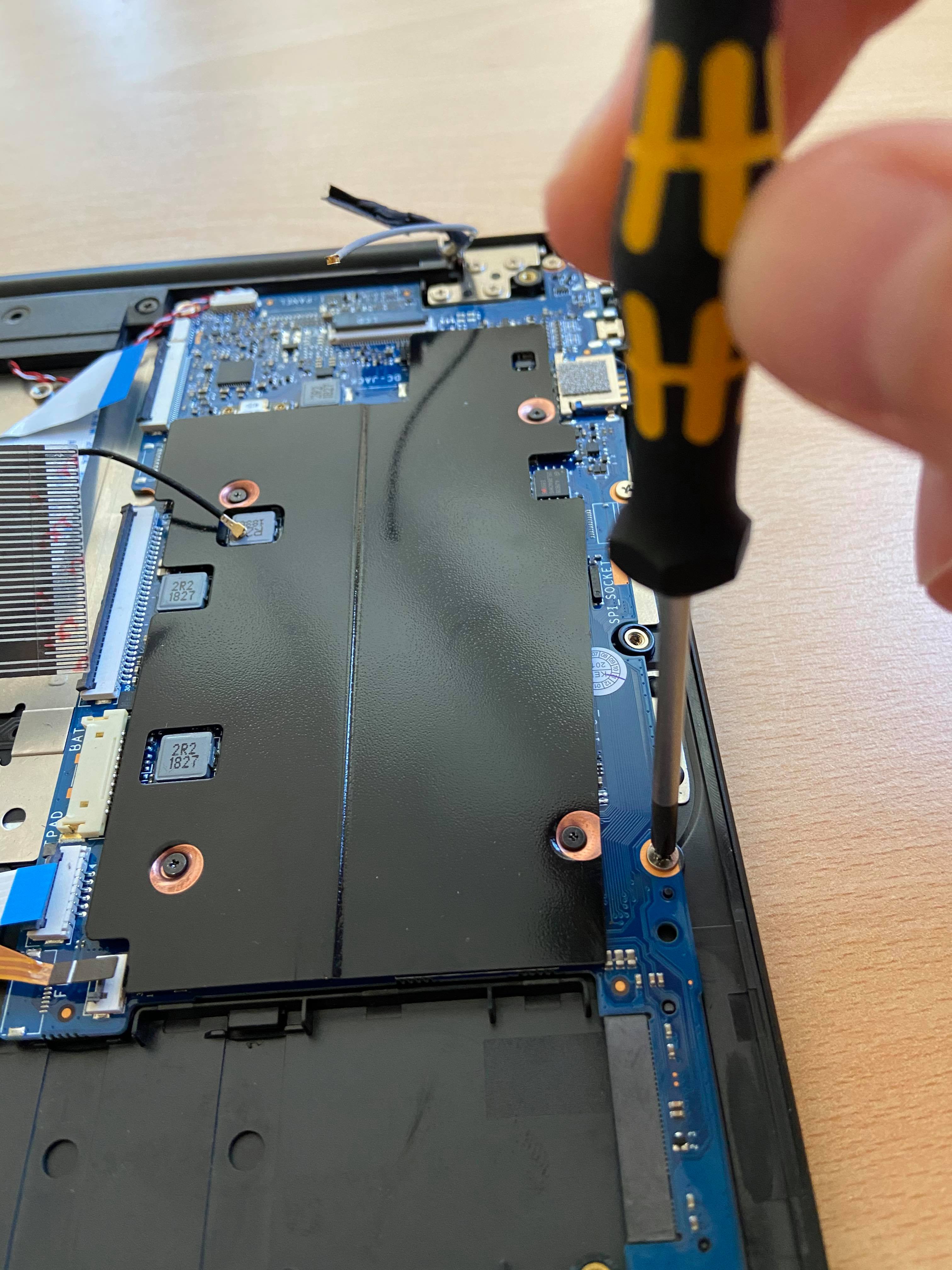

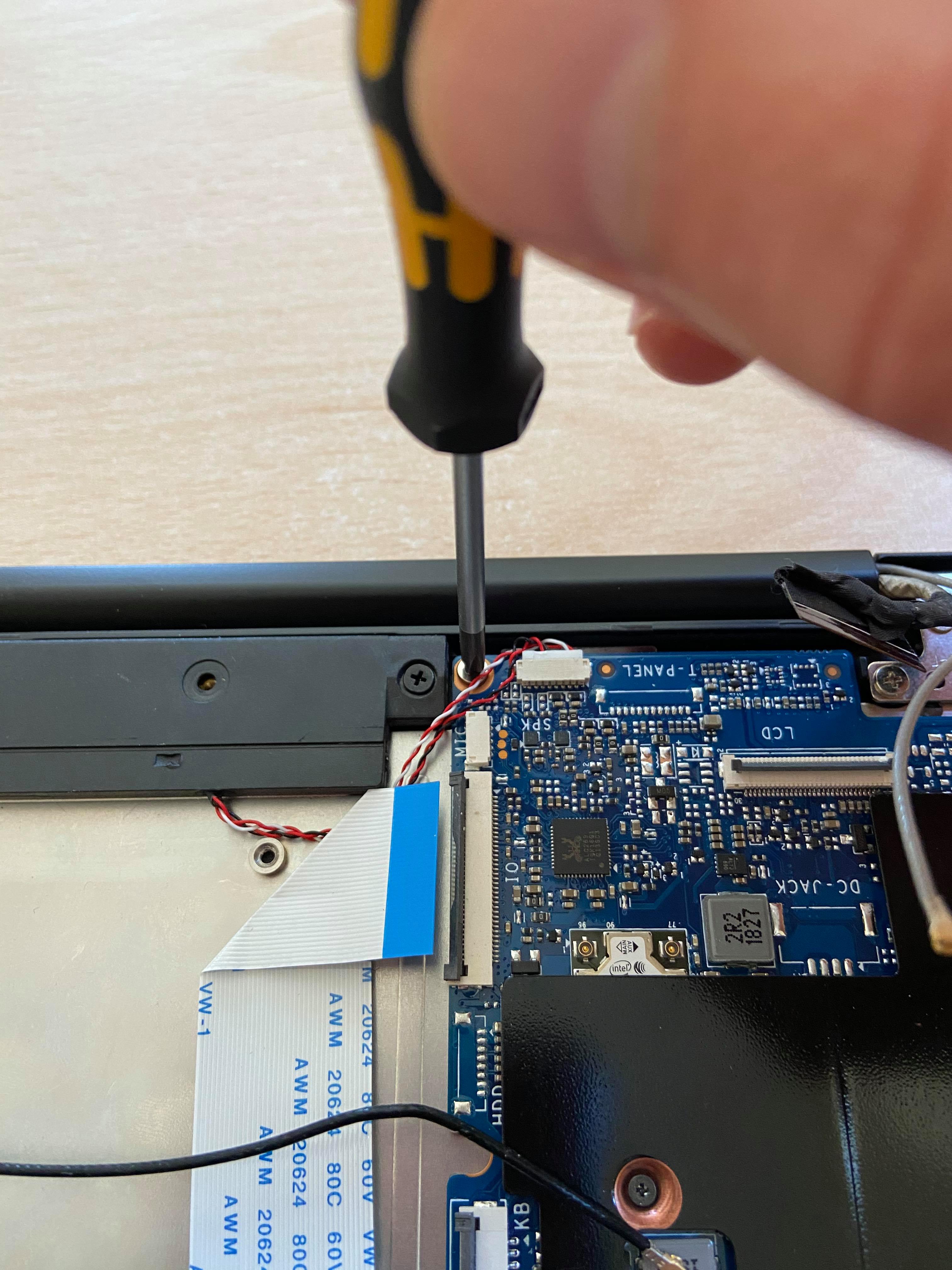

10. Removal of the mainboard: remove the 4 Philips screws around the edge of the mainboard

undefined



undefined



undefined



undefined

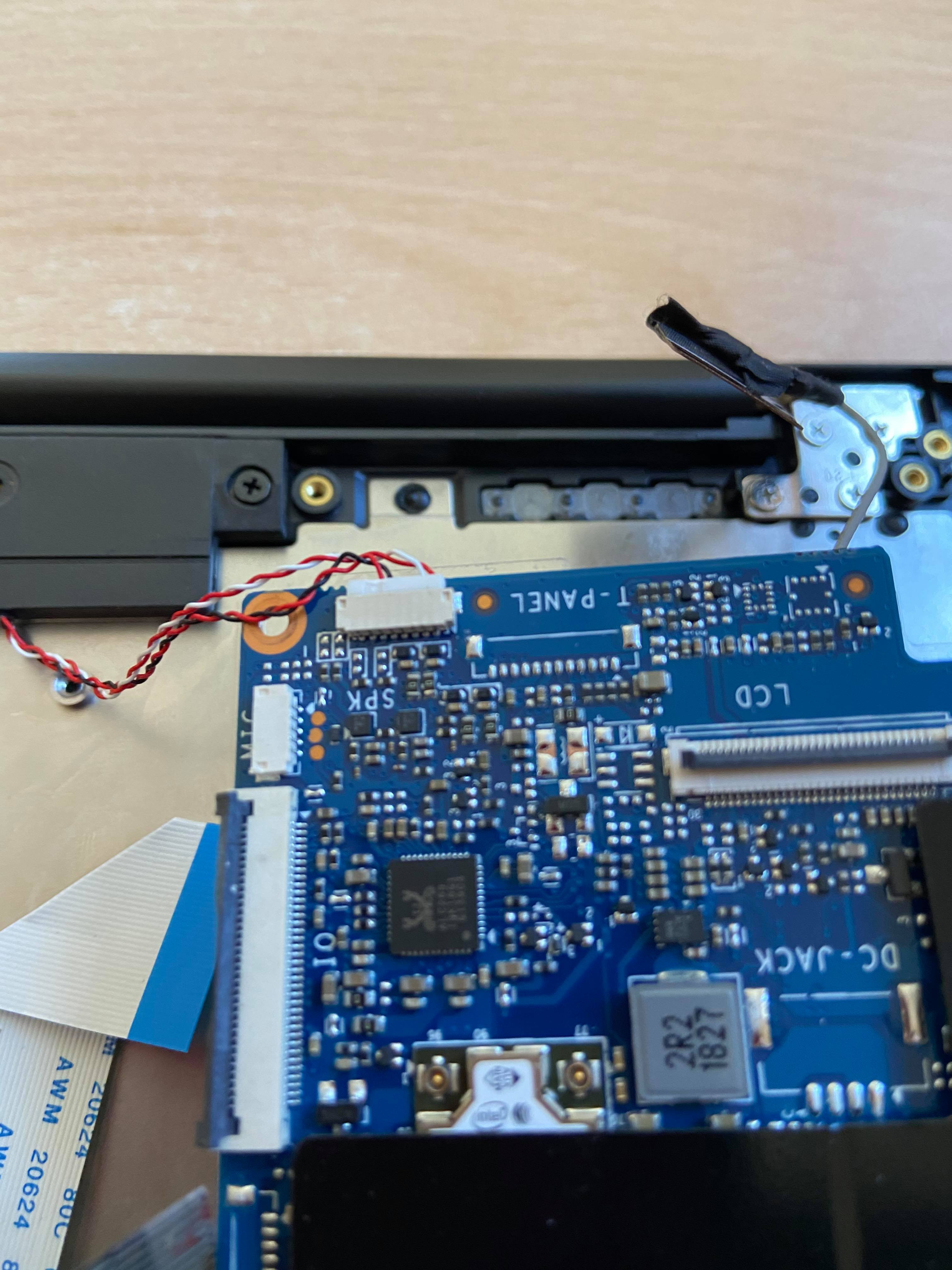

11. Lift the mainboard out carefully and then disconnect the speaker

undefined



12. Remove the 2 Philips screws from the speaker

undefined

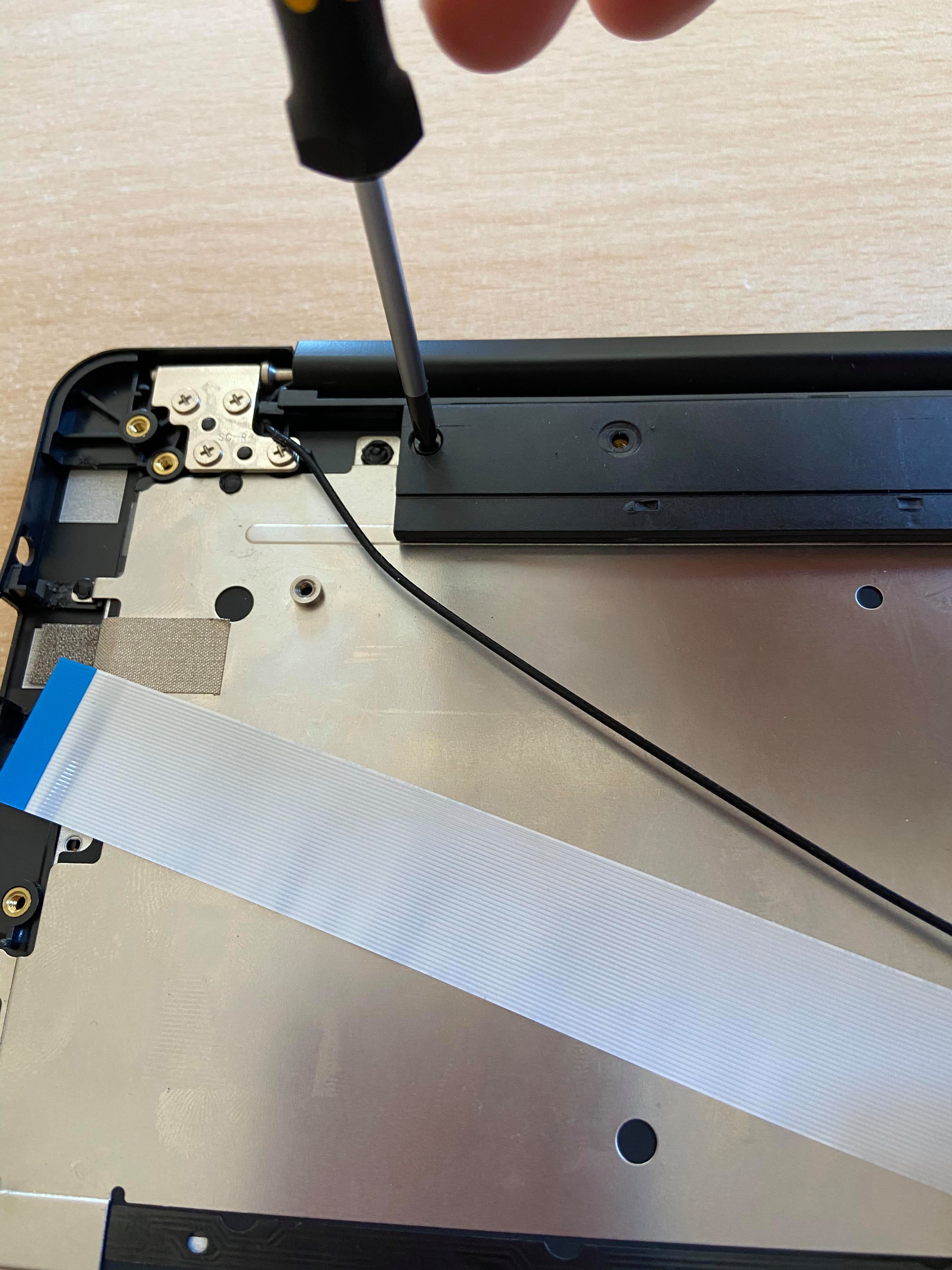

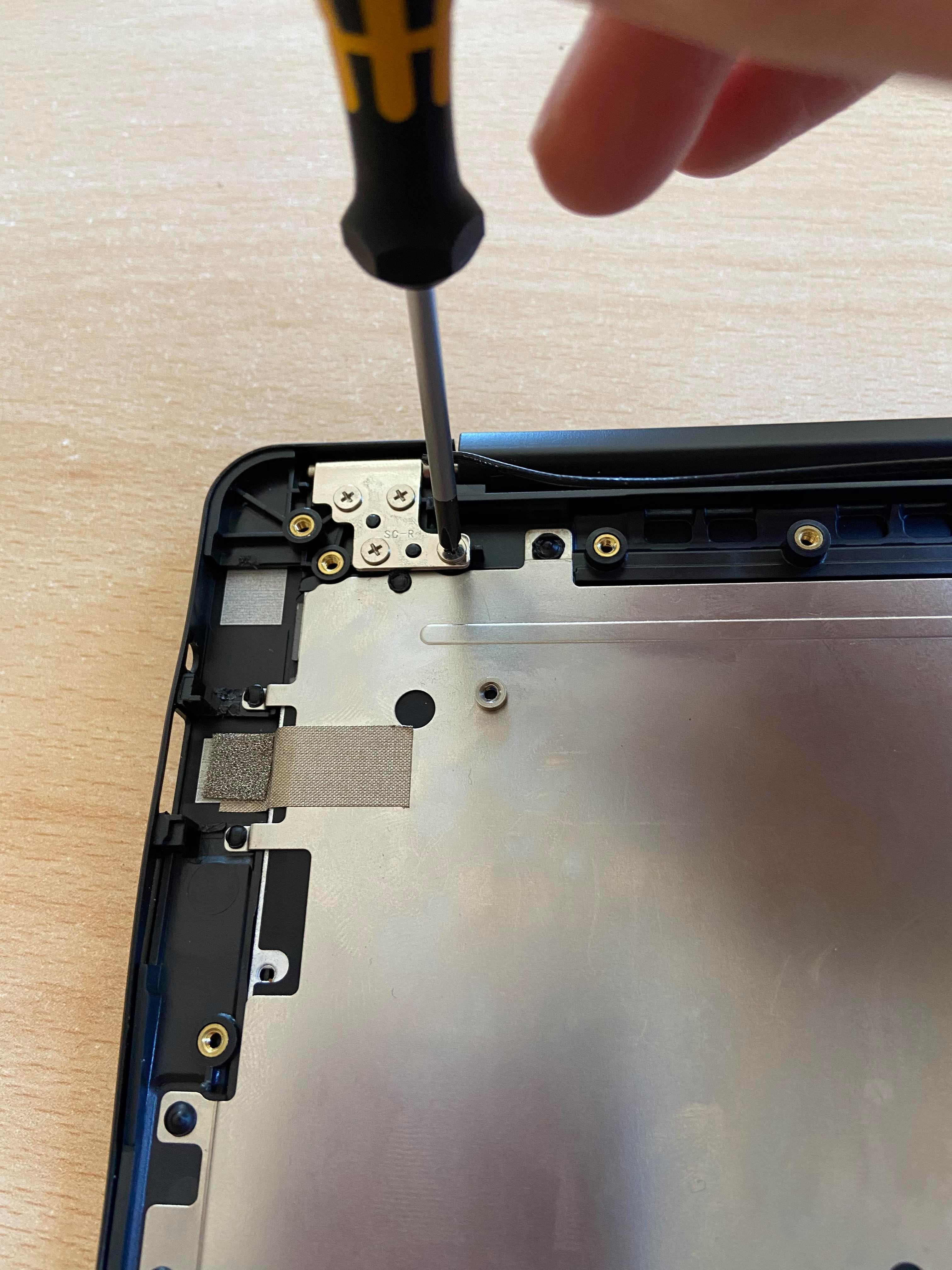

13. Remove the 4 screws in each hinge

undefined



undefined

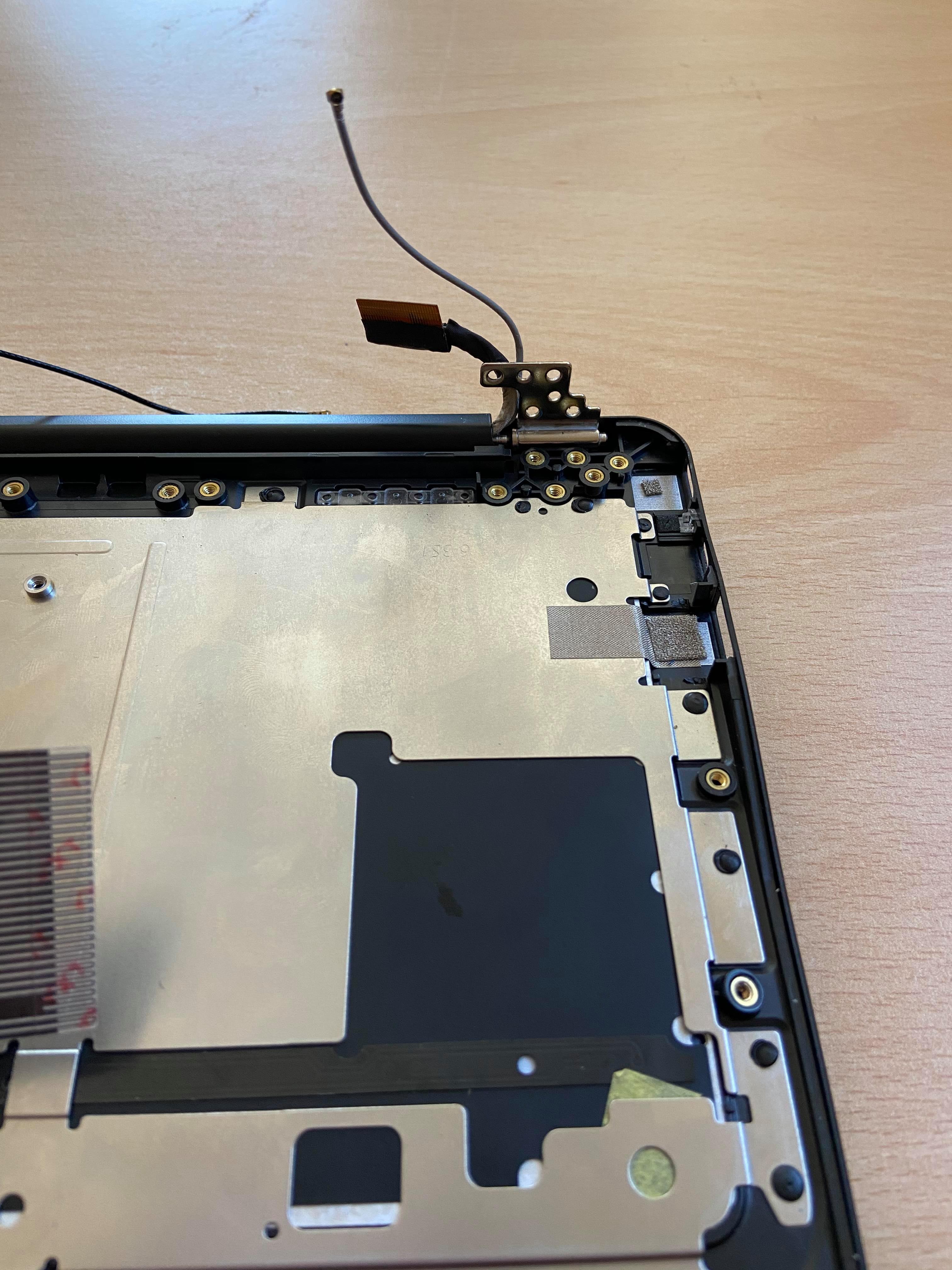

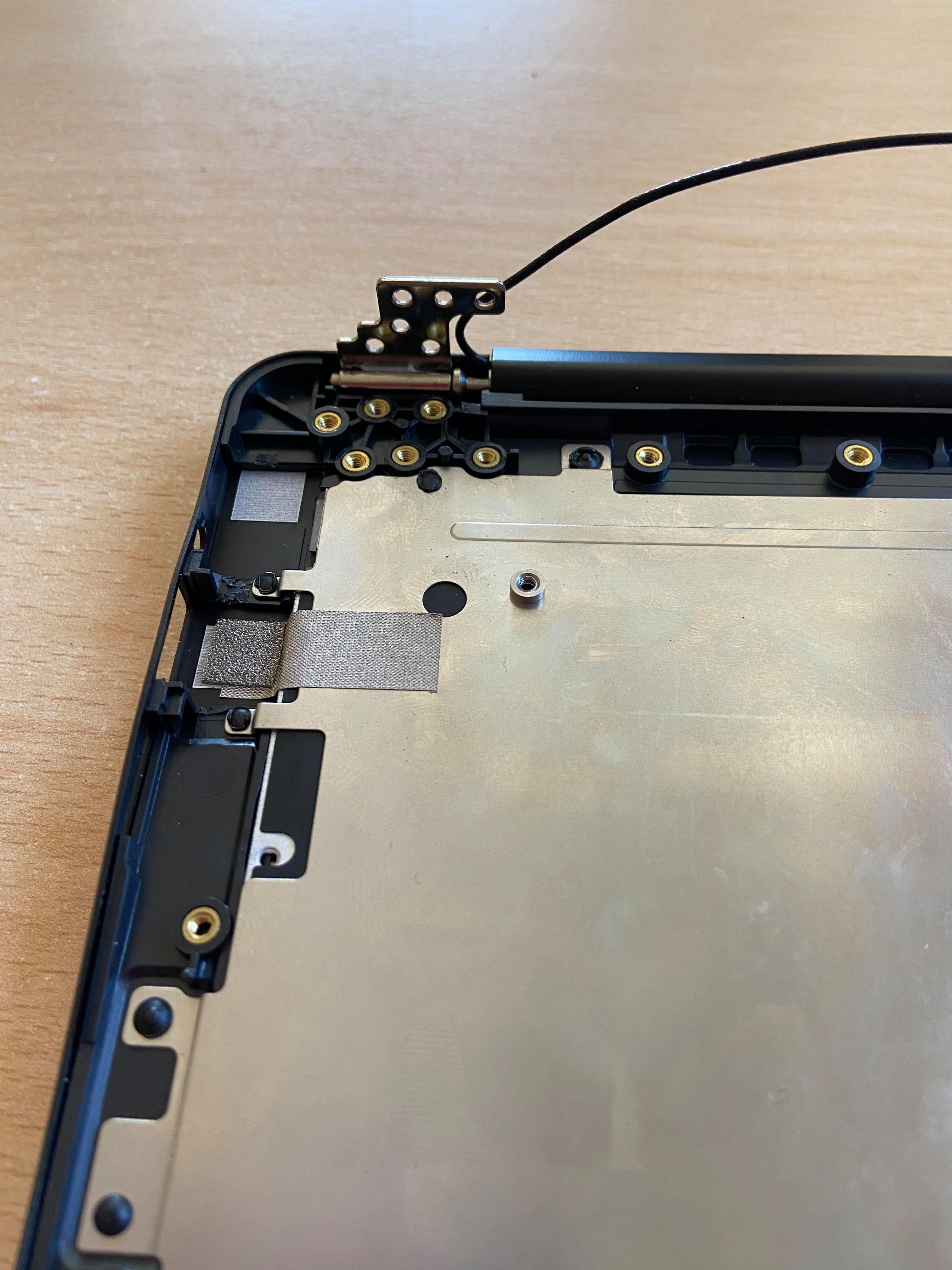

14. Lift the hinges up straight about 90' degrees which will leave enough space for the chassis to be separated from the display array

undefined



undefined



15. Disassembly is now complete.

undefined



16. Reassembly is the reverse of these steps.

Note: For the Star Lite Mk III there are 8x short and 4x long chassis screws. Image shows correct location of long screws.
